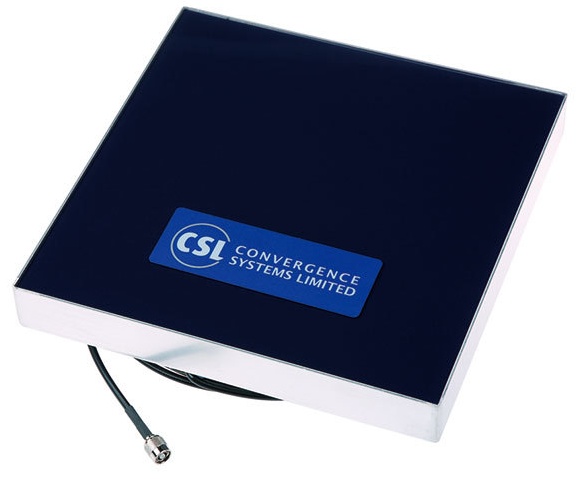

Convergence CS771 Circular Polarized UHF RFID Antenna
Convergence CS771 Circular Polarized RFID Far Field AntennaCircular Polarized RFID Far Field Antenna is a duplexed antenna (i.e., same antenna for transmit and receive). The antenna connects to one coaxial cable that links it to an antenna port of a RFID reader via a TNC reverse polarity coaxial connector.Features:• Single antenna element• Circular polarization• 902–928 MHz frequency band
Convergence CS771 Circular Polarized RFID Far Field Antenna
Circular Polarized RFID Far Field Antenna is a duplexed antenna (i.e., same antenna for transmit and receive). The antenna connects to one coaxial cable that links it to an antenna port of a RFID reader via a TNC reverse polarity coaxial connector.
Features: • Single antenna element • Circular polarization • 902–928 MHz frequency band operation • Excellent matching for best RFID reading performance • Ruggedized operation • TNC reverse polarity connector
Specifications: Physical Characteristics (LxWxH): 300mm x 300mm x 40mm Weight: 5lbs Mounting: 2 x 2 mounting stud, horizontal separation 5.875 inches, vertical separation 2.75 inches, 1/4 x 0.625 inch studs with 20 threads/inch threading Operating Temp: -20°C to 55°C (-4°F to 131°F) Storage Temp: -40°C to 85°C (-40°F to 185°F) Humidity: 5% to 95% relative, non-condensing IP Rating: IP67 Frequency Range: 800 MHz or 900 MHz band Polarization: RHCP or LHCP Axial Ratio: Less than 2dB Peak Linear Gain: 6dBiL Front-to-back Ratio: 20dB Gain Flatness: 0.5 dB Beamwidth (3 dB): 54 degrees Impedance: 50 ohms Input Power: 10 Watts ESD: 10 kV (no ESD sensitive components) Connector: TNC Reverse Polarity
Order Code LHCP: CS771-024- (L/R) HCP-N (N=1: 865-868 MHz for Europe & 865-867 MHz for India, N=2: 902-928 MHz, 024=standard 2.4m cable and please discuss with CSL sales department for special requirements) Restrictions on Use Approvals, features and parameters may vary depending on country legislation and may change without notice.
