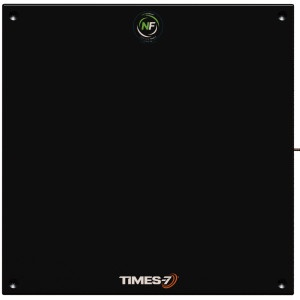

Part of the SlimLine range of proximity / near field antennas, and with its ultra-low profile and unique size / surface design, the A1030 is a world first for the UHF near field antenna market.Offering the world’s largest working surface in a near field antenna, and at just 6.5 mm / 0.25 in. thick, the A1030 is opening up new possibilities for item level RFID tracking where a short range read is required.The A1030 antenna offers outstanding near field performance
Part of the SlimLine range of proximity / near field antennas, and with its ultra-low profile and unique size / surface design, the A1030 is a world first for the UHF near field antenna market.
Offering the world’s largest working surface in a near field antenna, and at just 6.5 mm / 0.25 in. thick, the A1030 is opening up new possibilities for item level RFID tracking where a short range read is required.
The A1030 antenna offers outstanding near field performance in an unique and optimised footprint, improving workflow and eliminating stray tag-reads.
Highly durable, with flexible and easy mounting options, and with a fire retardant Kydex radome, the A1030 is a rugged performer - and as the largest and thinnest near field antenna around - the A1030 packs a sizeable punch in the world of UHF antennas.
The A1030 antenna offers outstanding near field performance in a unique and optimized footprint, improving workflow and eliminating stray tag-reads.
Highly durable, with flexible and easy mounting options, and with a fire retardant Kydex radome, the A1030 is a rugged performer – and as the largest and thinnest near field antenna around – the A1030 packs a sizeable punch in the world of UHF antennas.
Part of the SlimLine range of proximity / near field antennas, and with its ultra-low profile and unique size / surface design, the A1030 is a world first for the UHF near field antenna market.Offering the world’s largest working surface in a near field antenna, and at just 6.5 mm / 0.25 in. thick, the A1030 is opening up new possibilities for item level RFID tracking where a short range read is required.
Applications:
- World’s
thinnest & largest usable working area in a near field antenna - Ultra-low
profile Near Field antenna - Just 6.5
mm / 0.25 in. thick - Typical
applications:
Jewelry, Libraries, Retail POS, Pharmacy & Healthcare
Physical / Environmental SpecificationsDimensions (LxWxD): 300 mm x 300 mm x 6.5mm (11.8" x 11.8" x 0.25")
Weight: 500g / 1.1lbs.
Radome Material: Fire retardant ABS
Environmental Rating: IP53
Operating / Storage Temperature: 0° to +50°C / -30° to +60°C+32° to +122°F / -22° to +140°F
Mounting: Integrated mounting guides
Connector type / position: SMA female side fly lead (300 mm / 1’)
Electrical Specifications Frequency Range: 865-867MHz, 902-928 MHz
Far-Field Gain: < -15dBi typical
Typical VSWR across frequency range: < 1.8.1
Nominal Impedance: 50?
Maximum Input Power: 6W
Pushing the boundaries of RFID technology worldwide Times-7 are leaders in RFID antenna design and manufacture. Our patented award winning UHF antennas meet the needs of virtually any industry application; providing customers with fast accurate tracking of products, assets & people; empowering organizations to transform processes & reduce costs.
Our SlimLine range of antennas are unique in the RFID industry; offering high levels of performance & durability in an aesthetically superior form. Proven in a diverse & growing range of markets, applications include: retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management.
