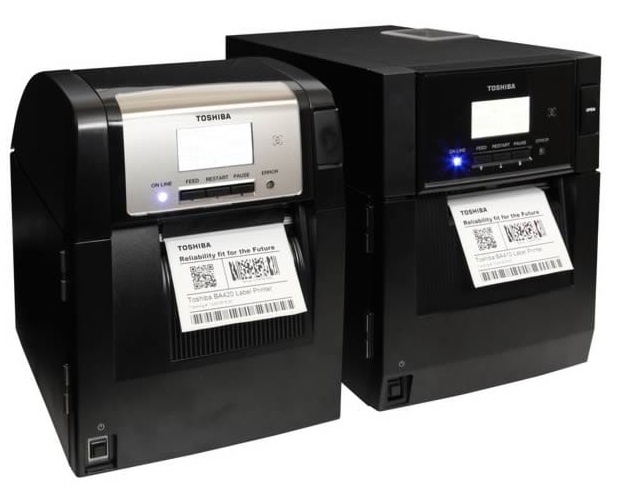

TOSHIBA BA400 barcode label printer series comes as BA410 & BA420, provides the functionality and robustness of an industrial printer with the compact footprint and ease of use of a desktop printer.For ultimate networking capabilities, it comes with a wide variety of communication interfaces, enabling you to manage your whole network of printers from a central source. The Toshiba BA400 Series 4.0inchwes width Thermal Transfer and Direct Thermal: with print speeds of upto: 50.8 mm/sec. (2 inches/sec.), 101.6 mm/sec (4
inches/sec.), 152.4 mm/sec (6 inches/sec.), 203.2 mm/sec (8 inches/sec)
Features:
Keeping the good – field-proved & reliable hardware
New system platform with advanced connectivity
Superior features with future-orientated upgrade possibilities
- New system platform and processor technology level up efficiency and productivity
- Print language emulation ensures vast compatibility and easy integration into complex IT systems
- Dual Band Wi-Fi (2.4GHz/5GHz) for improved wireless network connection quality
- NFC pairing for on-demand connections via Bluetooth
- Front-loading feature ensures smooth drop-in media loading
Enhanced productivity
Future-ready operating system
UHF RFID Kit (Availability varies from country to country)
Mobility & connectivity
•Toshiba BA400 series is the first in the next generation of products launched with an entirely new software platform.
•Built on the renowned mechanical platform of its predecessor, the BA400 series retains all the superb reliability and robustness.
•The new powerful processor further enhances the printer’s performance whilst future-proofing your investment.
•Improved connectivity with built-in Bluetooth for easy integration with mobile Android and iOS applications.
Models of the TOSHIBA BA400 Series Thermal Transfer / Direct Thermal:
BA410T-GS12-QM-S 8 dots/mm (203 dpi)
BA410T-TS12-QM-S 11.8 dots/mm (300 dpi)
BA420T-GS12-QM-S 8 dots/mm (203 dpi)
BA420T-TS12-QM-S 11.8 dots/mm (300 dpi)
Cutter module (BA204-QM-S)
Strip module (BA904-H-QM-S)
Cutter module (BA204P-QM-S)
Strip module (BA904P-H-QM-S)
Interface:
USB interface (V2.0 High speed)
LAN interface (10/100BASE)
Bluetooth interface(2400MHz ～ 2483.5MHz , CLASS2(2.5mW))
NFC(MIFARE (ISO/IEC 14443 TypeA))
USB Host Interface
Options:
Serial Interface Board (BA700-RS-QM-S)
Wireless LAN Board (BA700-WLAN-QM-S)
Expansion I/O Board (BA700-IO-QM-S)
Real Time Clock (BA700-RTC-QM-S)
Fan Fold Guide (BA904-FF-QM-S)
Parallel Interface (BA700-CEN-QM-S)
UHF RFID Module (BA704-RFID-U4-KR-S, BA704-RFID-U4-EU-S, BA704-RFID-U4-AU-S)
Redefinition of the BA400 series
For over 30 years Toshiba has developed innovative industry leading products. Now with the launch of the BA400 series a new direction is taken in the development of cutting-edge products.
New System platform with advanced connectivity
The BA400 series is the first of a next generation of product that comes with a totally new CPU and OS platform. This platform adds not only performance but extends the connectivity and adaptability of the BA400 series to meet the challenges of an ever-changing workplace.
Applications and environments
The BA400 series’ clamshell design for front-loading ensures smooth drop-in media loading, suitable for versatile applications. The BA410 with its metal case is suited for rugged manufacturing environments, whereas the BA420 with its small footprint and plastic case suits workplaces where space is a premium, such as offices or retail shops.
Superior features
The BA400 series comes with a wide range of features and options to meet your individual needs.
·· New system platform and processor technology for increased efficiency and productivity.
·· Print language emulation ensures compatibility and easy integration into complex IT systems.
·· Optional Dual Band Wi-Fi (2.4 GHz/5 GHz) for improved wireless network connectivity.
·· NFC pairing for on-demand connections via Bluetooth.
Enhanced productivity
Printing is a mission critical element of any business. At Toshiba we have improved the BA400’s productivity by increasing the maximum print speed to 8 inches per second, a 25% increase on the B-SA4 series. At the same time the renowned reliability eliminates almost any downtime – even in harsh environments.
Future-ready operating system
The redesigned OS platform supports multi print language emulation, which enables simple integration into complex IT environments. This extensible OS architecture ensures it will keep pace even with the latest technology standards and requirements.
RFID encoding
Toshiba’s unique RFID technology is now incorporated into our mid-range printer series, opening a wide-range of new applications across multiple markets. Thanks to this futureproof option and many more features, the BA400 series offers solutions that are usually reserved for industrial printers only.
Mobility & connectivity
The new OS platform meets the increasing requirements of mobile operators. By replicating the tools used in the Toshiba mobile printer range, operators can easily use their handheld devices to print to, configure, and control the BA400 series. NFC pairing allows easy on-demand Bluetooth connection. The dual Wi-Fi module option for 2.4 GHz / 5 GHz wireless networks ensures exceptionally broad and reliable connections.
