Cognex WebScan TruCheck FlexHite DPM Dome 2D Barcode Verifier adjusts the working distance of this versatile verifier for any part. Height adjustment is guided by Webscan’s patented laser focus indicator. This system is based on the same optical components as the popular TruCheck 2D USB DPM™ hand-held verifier models, and incorporates the same lighting options, field of view and x-dimension capable versions. Cognex WebScan TruCheck FlexHite DPM Dome 2D
Cognex WebScan TruCheck FlexHite DPM Dome 2D Barcode Verifier adjusts the working distance of this versatile verifier for any part. Height adjustment is guided by Webscan’s patented laser focus indicator. This system is based on the same optical components as the popular TruCheck 2D USB DPM™ hand-held verifier models, and incorporates the same lighting options, field of view and x-dimension capable versions.
Cognex WebScan TruCheck FlexHite DPM Dome 2D Barcode Verifier can handle your most demanding barcode verification challenges. Not just for direct part marks: a choice of 45-degree lighting for ISO 15415 or AIM DPM (45, 30 or 90) makes it perfect for virtually any printed label or direct part marking application including dot-peen and laser etched UID and UDI symbols.
Main Features:
• CCD Imager with Integrated Illumination
• USB 2.0 interface to PC
• ISO/IEC grading
• AIM DPM grading
• Data export to printer, PDF file or Excel
• Software easily upgradeable
• Calibrated to NIST traceable standards
• Parses and validates industry standard data formats
• Variable aperture size
Decoding/Grading Analysis Specifications:
Full ISO 15415 Grading A, B, C, D, F: Unused Error Correction, Modulation, Axial non-uniformity, Grid non-uniformity, Symbol Contrast, Reference Decode, Finder Pattern Damage, Bar Width Growth (X and Y), Quiet Zone, AIM DPM Grading: Cell Contrast, Cell Modulation

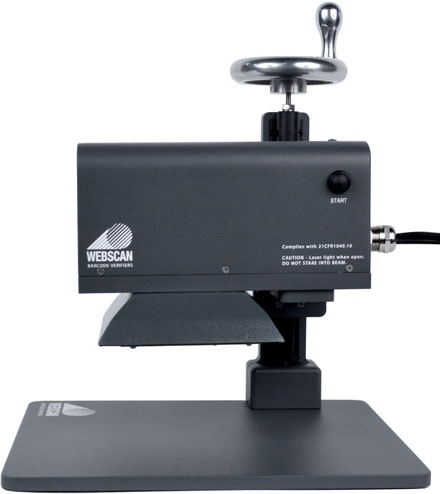

Cognex WebScan TruCheck FlexHite DPM Dome 2D Barcode Verifier comes with an adjustable height of this system makes it perfect for verifying symbols even when they are recessed or otherwise hard to reach with other verifiers. Simply place your part under the camera head, and adjust the height with the manual turn-wheel while the software detects the laser positioning indicator for perfect focus!
Calibration and traceability - All Webscan systems are calibrated and fully traceable to NIST standards. Calibration is performed by the user in a matter of seconds. You always know that your system is measuring accurately. There is never a question of accuracy with Webscan technology.
Meets requirements of every industry - Meets DOD MIL-STD130 for UID compliance. Meets GS1 standards and complies with ISO/IEC standards for 1D and 2D symbol quality measurement and accuracy compliance. This is the perfect solution for verifying compliance of direct part marked data matrix symbols or labels printed for the FDA UDI rule.
2D Barcode Data validation - Check the syntax of your barcodes to confirm that the data content doesn’t have errors. Webscan’s TruCheck software quickly shows you the content and meaning of UID symbols, pharmaceutical labels with expiration dates and lot numbers, or any data which follows common industry standards such as GS1 application identifier or HIBCC formats
The 9 different lighting options will allow you to check DPM codes on all different types of materials and surfaces. Complies with AIM DPM (45, 30Q, 30T, 30S and 90 degree lighting options) ISO/IEC TR 29158, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426-1, ISO/IEC 15426-2
Main Features:Cognex TruCheck FlexHite DPM Dome Barcode Verifier does not have 30 or 45-degree light settings.
Cognex TruCheck FlexHite DPM Dome Barcode Verifier lighting gives users the ability to properly illuminate barcodes on curved surfaces by lighting three times the amount of surface area on curved parts than the standard FlexHite verifier.
Cognex TruCheck FlexHite DPM Dome Barcode Verifier also has 90-degree lighting which is ideal from shiny surfaces or dot-peen markings. The field of view fits code up to 25mm wide and can handle codes with minimum x-dimensions as small as 6.0mil.
FOV: 24x18mm Min x-dim: 6.0mil
Kit includes: - Cognex TruCheck FlexHite DPM Dome Barcode Verifier with cable to connect to PC and Power supply with USA and EU plug
