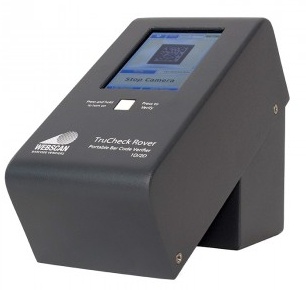

Cognex Webscan TruCheck Rover - CCognex WebScan TruCheck Rover Portable Handheld 1D & 2D Barcode Verifier provides
Cognex Webscan TruCheck Rover - CCognex WebScan TruCheck Rover Portable Handheld 1D & 2D Barcode Verifier provides
complete verification in a portable device using integrated lighting, a
rechargeable battery, and touchscreen. ISO compliant 1D, 2D, and DPM
verification and diagnostic tools without any connection to a PC or
other host computer. Webscan TruCheck Rover barcode verifier with
integrated lighting, a rechargeable battery, and a touchscreen
Cognex WebScan TruCheck Rover Portable Handheld 1D & 2D Barcode Verifier verifies all your 1D and 2D symbols with a portable hand-held verifier from Webscan, the leader in high performance barcode verification. The TruCheck Rover™ from Webscan provides a fully integrated 2D CCD imager, integrated lighting, battery and touchscreen for verification on the go. Compliant with standard to ISO15416, ISO15426-1, ISO15415, ISO15426-2, MIL-STD130, ISO16022, ISO18004 and ISO24778
To verify 1D or 2D symbols, simply position the imager over a barcode and press the button. No swiping or manual scanning. Clear and concise results are displayed, stored automatically, and available for printing later. You are guaranteed the most accurate and repeatable verification results.
Features:
• CCD Imager with Integrated Illumination
• ISO grading, AIM DPM (45Q only)
• Data export to printer, PDF file
• Software easily upgradeable
• Calibrated to NIST traceable standards
• Parses and validates industry standard data formats
• Variable aperture size
Calibration and traceability - All Webscan systems are calibrated and fully traceable to NIST standards. Calibration is performed by the user in a matter of seconds. You always know that your system is measuring accurately with Webscan technology.
Meets requirements of every industry GS1 Quality and Data Validation Verify that your 1D and 2D symbols comply with all GS1 requirements. Print quality is verified according to ISO 15415 and ISO 15416. Data format failures, which are all-too-common in GS1 barcodes, are clearly spelled out to make corrective action easy.
QR Codes for Marketing and Cell Phone Reading - QR Codes are emerging everywhere. Verify that your QR Codes are constructed and printed correctly in accordance with ISO 18004 and ISO 15415. Webscan verification systems will ensure that your marketing efforts are effective because your QR Codes are in compliance with industry standards for readability.
Healthcare and Pharmaceutical Regulations - These applications are very sensitive to accuracy and dependability. Verify symbol quality and data format according to GS1 specifications and ISO 15415 to ensure compliant and readable symbols for UDI and pharmacuetical barcode requirements.
Webscan was founded in 1995 with one singular goal: to design and build the world’s most accurate barcode verification systems. Through optical, mechanical, and electronic technologies that power its offline and online systems, Webscan has earned an international reputation for delivering ease-of-use and unsurpassed accuracy, across every barcode application, every time. Today,
leading packaging producers, defense, pharmaceutical companies, and retailers worldwide trust Webscan to be sure every barcode that goes to market complies with industry standards
Symbologies:Data Matrix, QR Code, Aztec Code, GS1-DataBar, (formerly RSS), GS1-Composite Symbology, UPC/EAN, Code 128, ITF-14, I25, Code 39, TLC-39, Codabar, PDF 417, Micro PDF 417 (limited to Field of View size), Pharmacode, MSI/Plessey
Technical Specifications - TruCheck series
Functions: 1D and 2D Portable handheld barcode verifier / webscanner
Design: illumination red LED light
integrated processing: touch screen display: wide opening angle
Field of view: 76.5mm x 57mm (8mil)
Image sensor characteristics: CCD sensing
Light Colour: Red
Wavelength: 660 nm
Ambient air temperature for operation: 0...+40 °C
Compliant with standard ISO15416
ISO15426-1
ISO15415
ISO15426-2
MIL-STD130
ISO16022
ISO18004
ISO24778
Cognex Webscan TruCheck Optima - Cognex TruCheck Optima handheld verifier works with all your 1D and 2D barcode symbols. With its integrated illumination, compact size, and three-inch-wide field-of-view, the TruCheck Optima is easy to move across a web of labels, single code, or object. Webscan Trucheck Optima barcode verifier can grade 1D and 2D barcodes
Cognex Webscan TruCheck Omni - Cognex TruCheck Omni™ has an extra-large field of view (up to 6 inches wide) and super high resolution. You can select multiple regions within your image to verify every barcode on a blister card or several barcodes on a shipping label all at once. Webscan Trucheck Omni barcode verifier with an extra-large field of view to grade barcodes
Cognex Webscan TruCheck Rover - Cognex TruCheck Rover provides complete verification in a portable device using integrated lighting, a rechargeable battery, and touchscreen. ISO compliant 1D, 2D, and DPM verification and diagnostic tools without any connection to a PC or other host computer. Webscan TruCheck Rover barcode verifier with integrated lighting, a rechargeable battery, and a touchscreen
Cognex Webscan TruCheck Dome - Cognex TruCheck Dome DPM verifier is designed with both dome and 90-degree lighting making it ideal for curved and reflective surfaces. The integrated dome and 90-degree lighting type can handle the widest range of DPM codes marked on a cylindrical part, while the 90-degree lighting setting works well for dot peen codes and codes marked on shiny surface. This ISO-compliant lighting imager head is mounted on an adjustable height for added versatility and flexibility when working with oddly- shaped parts.
