Quality Control barcode verifiers for 1D and 2D DataMatrix barcodes as it verify barcodes with highest precision and meets to ISO/IEC 15416 or ANSI X3.182 standards. The REA PC-Scan LD4 is a barcode verifier made in Germany which was developed in conformity with international standards. It is especially designed for measuring barcodes with highest precision. The combination of state-of-the-art technology, process reliability and intuitive operation makes the REA
Quality Control barcode verifiers for 1D and 2D DataMatrix barcodes as it verify barcodes with highest precision and meets to ISO/IEC 15416 or ANSI X3.182 standards. The REA PC-Scan LD4 is a barcode verifier made in Germany which was developed in conformity with international standards. It is especially designed for measuring barcodes with highest precision. The combination of state-of-the-art technology, process reliability and intuitive operation makes the REA PC-Scan LD4 globally unique in its class.
Final statements "Pass" or "Fail" are central display elements and enable an immediate result. The simultaneously displayed details allow for an immediate and exact barcode quality analysis.
With the REA PC-Scan LD4, you can find out precisely why the scan rates are low. The detailed evaluation results allow a lasting optimization of the barcode quality.
Product Details
Fully automatic barcode contrast calibration before every barcode scan with an integrated metric standard for precise width and length measurements with constant lighting angle of 45° over the entire scan width of 133 mm or 220 mm and laser illumination with a wave length of 670nm. Constant sensor angle of 90° over the entire scan width constant measurement distance over the entire scan width

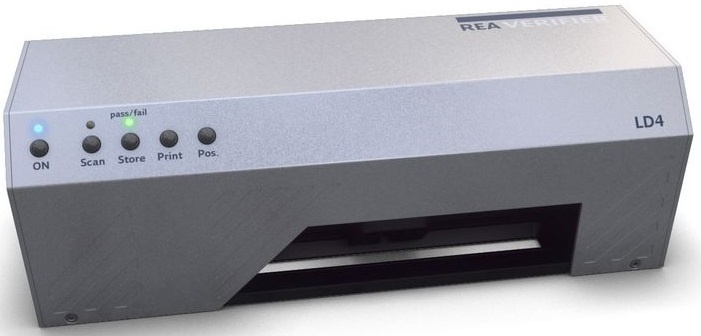

REA PC-Scan LD4 barcode verification system offers a contact-free measurement and an aperture 10 to 20 mil in combination with up to 220 mm measure width (exemplary configuration) with a hollow body measurement adaptor for barcodes on hollow bodies available. There are 2 device variants available: 133 mm scan width and 220 mm scan widths.
Features:
Measurement according to ISO/IEC 15416 or ANSI X3.182
Optional parameters in accordance with the respective barcode standards for optimal print process control
Multiple complete settings can be stored as profiles
Settings profiles can be imported and exported, settings can be cloned for multiple devices
Adjustment of desired minimum quality with automatic target/actual comparison
Auto discrimination of the most important barcode symbologies
Automatic barcode size and check digits monitoring
Multiple measurement with averaging from up to 10 single measurements
Verification and visualization of quiet zones with an extended area
Ratio monitoring for two bar width barcodes (e.g. Code 39, 2/5i)
Verification according to the GS1 General Specifications requirements
Support with evaluation of GS1-128 data structures
Verification reports can be displayed as GS1 report and printed
Multilingual verification reports and user interface
Barcode Types A variety of different codes can be measured as standard with the REA PC-Scan LD4:
EAN-13
UPC-A
UPC-E with/without Add-ON
EAN-8
2/5 Interleaved with/without check digit
ITF-14
Code 39 with/without check digit
PZN-Code
Code 32
Code 128
GS1-128 with/without content verification, GS1-Databar (limited, expanded, stacked).
REA PC-Scan incorporates a software package and a measuring device (Laser Device). The Laser Device has a built in measuring unit with a solid state red light laser driven by a motor. Measurements are transferred to the PCScan's software application (included at no additional cost) for evaluation. The evaluation is divided into two parts; One part according to ISO/IEC 15416 (CEN or ANSI evaluation) the other part according to Symbology specifications and/or standards, in the case of EAN Codes ISO/IEC 15420 (traditional evaluation) Software Controlled Values and result are presented clearly on your PC's screen in colour.
REA PC-Scan iscreen shows the two evaluation methods at the same time. ISO/IEC 15416 method evaluates in detail the reflectance profile with different aspects. Quality 'level' of your barcode is presented in 5 steps, with the user being is able to preset a quality requirement according to the application or material characteristics. The traditional barcode evaluation display from the REA PCScan gives detailed metric results, bar width and positions as extreme and average values direct on the screen. Detail values for each bar and space can be shown in a separate table. As well as printed codes the REA PC-Scan is able to measure positive and negative Film Masters according to ISO/IEC 15421.
REA - PCScan Features
Contactless verification by a precision measuring unit. Meets new ISO/IEC standard 15416 and incorporates traditional method. Meets ISO/IEC standard 15421 for Film Master measurement. 155mm wide measuring path and optional 240mm. Clear presentation of results on PC screen. Automatic size determination and metric values in microns. Automatic calibration for each measurement.
The combination of state-of-the-art technology, process reliability and intuitive operation makes the REA PC-Scan LD4 globally unique in its class. Final statements „Pass“ or „Fail“ are central display elements and enable an immediate result. The simultaneously displayed details allow for an immediate and exact barcode quality analysis.Thanks to the graphical display of the measurement results different measurement aspects can be recognized and assessed quickly and reliably. The display is optimized for easy understanding of the meaning of the measurement results. If required, evaluation reports are automatically saved and supplemented with a job number in the file name.
The operation can be protected by user administration or password. For individual complete settings, a profile can be created. This can be called up later by the push of a button for routine verifications. The correct measurement setting can thus be created quickly and safely in just one step. For subsequent data exchange, verification reports can be generated as a PDF file and exported as a text table (CSV). Comment features enable individual user comments within the report. With the REA PC-Scan LD4, you can find out precisely why the read rates are low. The detailed evaluation results allow a lasting optimization of the barcode quality.
Optional software extensions REA Article Look Up SoftwareAn additional verification is carried out using database data. Each item number is checked against individual data since there is a separate entry in the database for each product. In a simple case, it is checked, whether a read item number exists within the code. In the extended case, e.g. data and prices can be checked.REA ScanLinkREA ScanLink is an optionally available software solution for extended standard-compliant code verification. Data structures are regulations about how information must be stored in a code. Ideally, this regulation is equal for all, so that all code users know the meaning of the code contents.
The generally valid regulations for data structures are specified by ISO stand-ards ISO / IEC 15459-x).REA Code AnalysisThe REA Code Analysis is an optional software extension for all REA verification devices. In many applications, data is used which is built according to an internally defined structure (proprietary data). REA Code Analysis provides these require-ments in a table.
Barcode data content is thus checked for its correctness.
