shows symbology shows barcode content and the final verification results. TransWin32  Evaluation Software REA Product Database 32Database-software expansion for the REA Barcode Verifier which does verification of optical codes according to international standards is part of delivery contracts and print process control.

REA Verifiers are world wide in use for barcode and Matrix code verifications. REA TransWin32 is the central control software to acquire, visualize, store and print verification reports. REA TransWin32 can be used on a typical MS Windows operated standard PC.

REA Verifiers can be connected by standard network cables to a company network and be controlled by one or several REA TransWin32 installations. REA TransWin32 can be installed with one license on several PCs. Reports are sent by a standard TCP/IP protocol from the verifier to the PC.

The user friendly visualization allows seeing the result, symbology and coding content immediately. Results are available for immediate use in incoming, outgoing goods control and print process control.

Verification reports are sent by TCP/IP to TransWin32. The report view shows symbology, code content and the final result. This allows immediate reaction in production, incoming and outcoming goods control.

Each error gets an own error message to simplify analysis and error removal. Corresponding results are also highlighted in red Comments, user addresses and verifier device details can be added to each verification report.

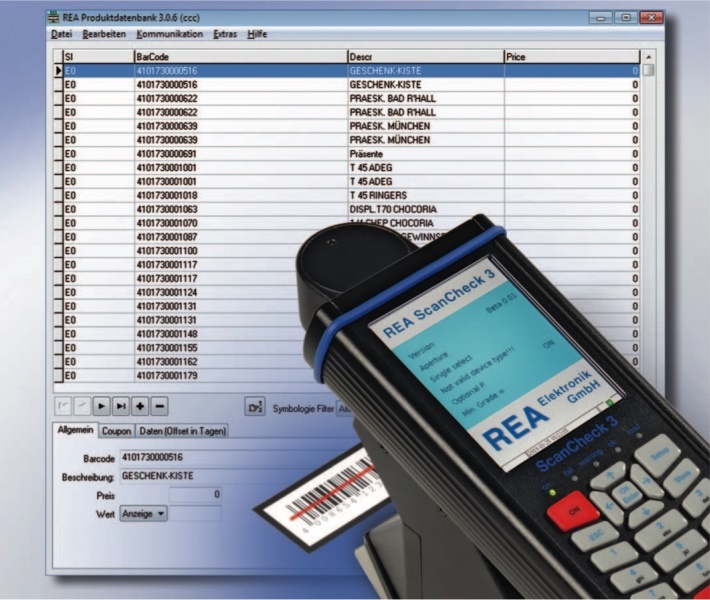

REA Product Database 32 adds an additional feature to a REA verification  device – a database query function
Product numbers that are read are translated into a plain text description. This function allows an increased control of the codes to verify that the correct codes are on the packaging material and confi rms that the date infor mation (e. g. best-before date) matches the print and product number.

Basic Functions
The best-before date of the product can be displayed and verifi ed. Up to fi ve different date information for each product can be individually stored in the database. Product variations with identical EAN numbers can be differentiated by a version attribute (identical product from different suppliers, very similar products). Coupons from customer loyalty programs without barcodes can be included with a visual inspection in quality control.

The portable REA testing equipment can integrate the database and at the same time work independently from the PC. The database function can be included in the ISO/IEC 15416 analysis as an additional evaluation parameter. Products that are not found lead to a failed result. Incorrectly coded date information also lead to a failed result.

Features:
One-step testing of the code quality, together with an examination of extended code contents is possible
Expanded code analysis for examination of content, abbreviations, prices, expiration dates, coupon characteristics, etc.
The fully portable devices REA ScanCheck3 and Check ER allow to use the REA Product Database 32 function independent from a PC connection
The verifi cation report incorporates the data from the database individually for each product

Technical Data:
Software REA Product Database 32:
Software option for REA Verifi er devices: REA PC-Scan/LD3, REA ScanCheck 3, REA MLV-2D, CheckER
Database result incorporation in verifi cation reports (e. g. REA TransWin32 software)
Pass result if an product exists in the database and fail if not
Functionality related to bar code type (e. g. product number only or extended codes)

PC Hardware Requirements:
CPU: 1.5 GHz clock rate, 1 GB RAM main memory
Hard disc memory: min. 10 GB with a minimum of 30 MB free memory
Display: 1 colour display with a minimum of 1280 x 1024 pixels
Colour graphic-card: according to the requirements of the connected display
Removable drive: 1 CD-ROM or DVD drive
Interface: 1 free LAN or network interfaceRequirements for operation:
PC with Windows Operating system (2000 and later)
Available Network interface for PC’s which are not running in a network
PC integrated in a network and REA Verifi er connected to the same network
REA Verifier device Scanner
