is well suited for industrial and outdoor installations, the Proton reader 4-port antenna ports capable of a 31.5 dBm maximum power, enabling to build RAIN RFID portals for long range reading. Its compact and robust form factor makes it easy to install and the IP65 protection permits outdoor or harsh environment installations. Proton R4320P is a rugged long range RAIN RFID reader of the easy2read© product line, well suited for industrial environment
is well suited for industrial and outdoor installations, the Proton reader 4-port antenna ports capable of a 31.5 dBm maximum power, enabling to build RAIN RFID portals for long range reading. Its compact and robust form factor makes it easy to install and the IP65 protection permits outdoor or harsh environment installations.

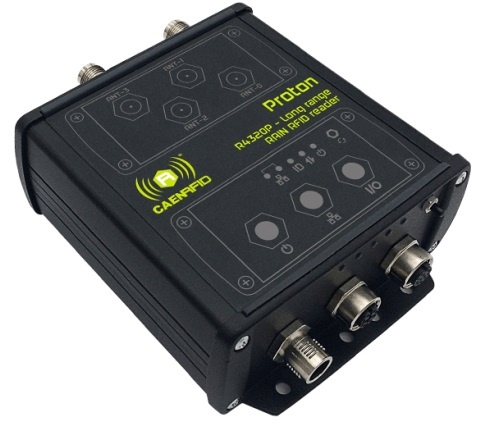

Proton R4320P is a rugged long range RAIN RFID reader of the easy2read© product line, well suited for industrial environment installations.
The Proton reader has 4 antenna ports capable of a 31.5 dBm maximum power enabling to build RAIN RFID portals for logistic. Its compact form factor makes it easy to install and the IP65 protection permits outdoor or harsh environment installations. Featuring Power Over Ethernet, RS232 and GPIOs via industry standard M12 connectors the Proton is an ideal choice for industrial automation and Industry 4.0 solutions.
The Proton is based upon an embedded Linux platform and it’s easily configurable using an internal web interface. System integrators can customize the behavior of the reader installing Java code that, having access to all the RFID features and interfaces, permits a full customization.
The Proton reader complies with and can operate in both European and US regulatory environments and, due to its multiregional capabilities, it’s ideal for integration in devices requiring compliance to different geographical regions.
Features:
RAIN UHF EPC Class1 Gen 2 ISO 18000-63 Compliant
Multi-regional support
Four 50 Ohm TNC-RP antenna connectors
Power over Ethernet interface ( PoE)
Up to 31.5 dBm (1.4 W) output power
Internal scripting engine
Robust IP65 in compact form factor
M12 industrial connectors
Development Kit available
Applications: RAIN RFID portal for logistic
Industrial automation reading points
RAIN RFID tunnels
Access control reading points
Featuring Power Over Ethernet, RS232 and GPIOs via industry standard M12 connectors the Proton is an ideal choice for industrial automation and Industry 4.0 solutions.
The Proton is based upon an embedded Linux platform and it’s easily configurable using an internal web interface. System integrators can customize the behavior of the reader installing Java code that, having access to all the RFID features and interfaces, permits a full customization.
The Proton reader complies with and can operate in both European and US regulatory environments and, due to its multiregional capabilities, it’s ideal for RAIN RFID solutions requiring compliance to different geographical regions.
Frequency Range: 865.600÷867.600 MHz (ETSI EN 302 208 v3.1.1) 902÷928 MHz (FCC part 15.247)
RF Power: Up to 31.5 dBm (1.4W) conducted (ETSI) // Up to 30 dBm (1W) conducted (FCC)
Number of Channels: 4 channels (compliant to ETSI EN 302 208 v3.1.1) // 50 hopping channels (compliant to FCC part 15.247)
Standard Compliance: EPC C1 G2 / ISO18000-63
CPU: ARM9 @ 400Mhz on Atmel AT91SAM9G25
Operating system: Linux
Receiving Capability: Gen 2 Dense Reader Mode Management // Data rate up to 400 Kb/s
Connectivity: RS232 Serial Communication (M12 connector) // Ethernet 10/100/1000BASE-T (M12 connector) // PoE standard IEEE 802.3af
Digital I/O: M12 connector // 2 digital inputs optically isolated // 2 solid state photorelay outputs optically isolated (500mA max)
Antenna Connectors: 4 TNC Reverse Polarity
Electrical Power: 9÷36 DC power supply (12W) // PoE standard IEEE 802 3af (12,95W)
Visual Status Indicators: Multicolor LEDs: Power, Activity, Status and Applications
Operating Temperature: -10°C to +55°C
IP Rating: IP65
Dimensions: (W)131 x(L)106 x (H)50 mm3 // 5.15 x 4.17 x 1.96 inch3
Weight: 530 g
