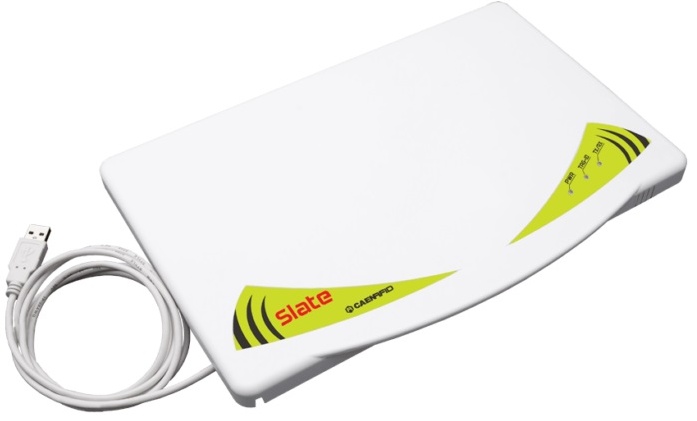

The reader is powered and controlled directly by an USB cable, thus allowing to read EPC Class1 Gen2 UHF RFID tags in an easy desktop environment.
Features: • EPC C1 G2, ISO 18000-6C Compliant • Multi-Regional Support • USB power and communication • Integrated circular polarized antenna • Low profile
Thanks to its low profile (15 mm) and its size (approximately an A4 page), the Slate reader is the perfect choice for various applications such as point-of-sales, document tracking, tag programming stations, access control and so on. It can also be used as a building block for smart shelves and smart displays.
Being compliant with European (model R1260E, R1260EB) and US (model R1260U, R1260UB) regulatory environments, the Slate reader allows installations in various countries worldwide as needed by retailers, forwarders, warehouses and other global organizations.
The core component of the Slate reader is the CAEN RFID Quark module, the lowest power consuming module available on the market.
Applications: • Point-of-sales • Documents tracking • Access control • Tag programming stations • Inventory management
Specifications:
Frequency Range: 865.600 ÷ 867.600 MHz (ETSI EN 302 208 v3.1.1)(Mod. R1260E, R1260EB) / 902 ÷ 928 MHz (FCC part 15.247)(Mod. R1260U, R1260UB) / 920.625÷924.375 MHz (SRRC RFID national standards)
RF Power: Programmable in 15 levels (1dB step) from 4dBm ERP to 18dBm ERP (from 2.5mW ERP to 67mW ERP)(Mod. R1260E, R1260EB) / Programmable in 15 levels (1dB step) from 4dBm ERP to 18dBm ERP (from 2.5mW ERP to 67mW ERP)(Mod. R1260U, R1260UB)
Antenna: Integrated Circular Polarized Antenna
Number of Channels: 4 channels (compliant to ETSI EN 302 208 v3.1.1)(Mod. R1260E, R1260EB) 50 hopping channels (compliant to FCC part 15.247)(Mod. R1260U, R1260UB) 16 hopping channels (compliant to SRRC RFID national standards) All subsets of FCC band are supported via FW upgrade
Standard Compliance : EPC C1 G2/ISO 18000-6C
User Interface: Green LED: Power / Blinking red LED: Tag detection / Blinking yellow LED: USB communication activity / Buzzer: user programmable event signalling
Connectivity: USB Type A plug connector / Bus powered USB 2.0 device / Must be connected to High-power Port (500 mA @ VBUS) / It appears as USB serial port / Virtual Com Port (VCP) drivers for Windows XP/Vista /Seven (7), Windows CE 4.2, Linux 2.40 and greater Baudrate: up to 115200 Databits: 8 Stopbits: 1 Parity: none Flow control: none
Dimensions: (W)297 x (L)205 x (H)15 mm3 / (11.7 x 8 x 0.6 inch3)
