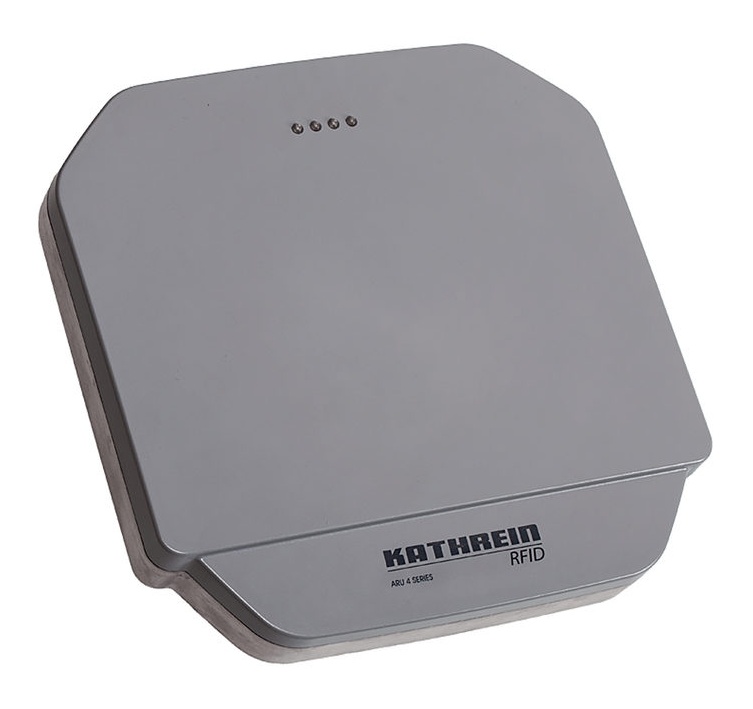

The Kathrein M-ARU-ETH-E6 is a highly integrated RFID UHF sensor based on the Kathrein mid range antenna series and the Kathrein industrial reader platform.

The device has a PoE and a serial communication interface plus digital GPIOs (inputs/outputs). The voltage can optionally be supplied over PoE or locally.

The Kathrein Reader M-ARU4-ELC with integrated 65° Wide range antenna is a unit with an Ethernet communication interface and ©KRAI Interface for use in the frequency range from 865 to 868 MHz (865 to 867 MHz for India) for the EPC Gen2v2 standard (ISO 18000-63). With the Linux running on the embedded PC based on the Q7 standard, a high computing power is available. The user can set up and run his own complex applications. Thus, the device is ideal for applications with time-critical filters in high to very high tag populations

The Kathrein M-ARU-ETH-E6 is a highly integrated RFID UHF sensor based on the Kathrein Mid Range antenna series and the Kathrein industrial reader platform. The device has a PoEthernet and a serial communication interface plus digital GPIOs (in-/outputs).

The Kathrein Reader MARU4-ELC with integrated 65° Wide range antenna is a unit with an Ethernet communication interface and ©KRAI Interface for use in the frequency range from 865 to 868 MHz (865 to 867 MHz for India) for the EPC Gen2v2 standard (ISO 18000-63). With the Linux running on the embedded PC based on the Q7 standard, a high computing power is available. The user can set up and run his own complex applications. Thus, the device is ideal for applications with time-critical filters in high to very high tag populations

The Kathrein M-ARU-ETH-E6 is a highly integrated RFID UHF sensor based on the Kathrein Mid Range antenna series and the Kathrein industrial reader platform. The device has a PoEthernet-and a serial communication interface plus digital GPIOs (in-/outputs).

Features:
•  System compliant to EPC Class 1 Gen2/ISO 18000-6C standards
•  Integrated 100° Mid-Range antenna
•  Dense Reader Mode (DRM)
•  configurable emitted output power from 17 dBm up to 24.25 dBm
•   (50 mW - 266 mW) ERP  in 0.5 dB steps
•  PoE = Power over Ethernet, Mode A: Endspan , Standard IEEE 803.af (phantom
•  power); recommended power sourcing equipment: Netgear FS108P
•  Lancom ES-1 108P , Phihong POE36U-1A T  (Injector)

The supply voltage optionally can be served over PoE or local. Active and passive RFID-Transponder can be handled for reading and writing.

Applications:
•  fork lift and floor-borne vehicle
•  industrial automation
•  warehouse systems

The Kathrein M-ARU-ETH-E6 is a highly integrated RFID UHF sensor based on the Kathrein Mid Range antenna series and the Kathrein industrial reader platform. The device has a PoEEthernet-and a serial communication interface plus digital GPIOs (in-/outputs). The supply
voltage optionally can be served over PoE or local. Active and passive RFID-Transponder can be handled for reading and writing.

The supply voltage optionally can be served over PoE or local. Active and passive RFID-Transponder can be handled for reading and writing.

The Kathrein M-ARU-ETH-E6 is a highly integrated RFID UHF sensor based on the Kathrein Mid Range antenna series and the Kathrein industrial reader platform.
The device has a PoEEthernet-and a serial communication interface plus digital GPIOs (in-/outputs).
The supply voltage optionally can be served over PoE or local. Active and passive RFID-Transponder can be handled for reading and writing.
