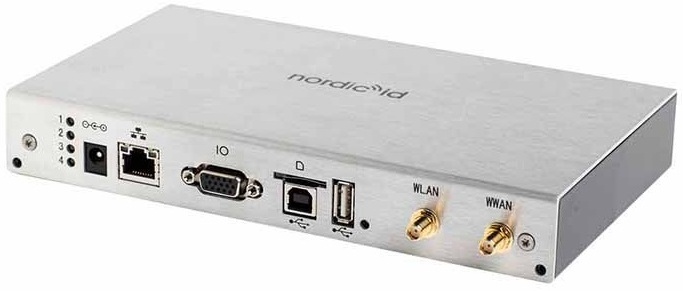

4-port UHF RFID reader with computer inside and multiple conncetivity options. Reading speed up to 1000 tags /sec. Frequency: ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz, supported standar: ISO 18000-63 (EPC Class 1 Gen 2), Max receive sensitivity: -81 dBm, Reading speed: Up to 1000 tags/sec., conducted porwer: 30 dBm (1W), external antenna port: 4 pcs. 50 Ω / SMA Female, CPU: 1.2GHz 64-bit Quad-Core Cortex-A53 processor, Operating system: Debian based embedded
4-port UHF RFID reader with computer inside and multiple conncetivity options. Reading speed up to 1000 tags /sec. Frequency: ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz, supported standar: ISO 18000-63 (EPC Class 1 Gen 2), Max receive sensitivity: -81 dBm, Reading speed: Up to 1000 tags/sec., conducted porwer: 30 dBm (1W), external antenna port: 4 pcs. 50 Ω / SMA Female, CPU: 1.2GHz 64-bit Quad-Core Cortex-A53 processor, Operating system: Debian based embedded Linux, Memory: 1 gb ram, 4 gb flash, Size: (L) 210 x (W) 121 x (H) 31 mm / (L) 8.3 x (W) 4.8 x (H) 1.2 inch and weighs 700g / 24.7oz
Fast and accurate automated data collection. It enables real-time visibility of tagged items with full support for efficient tracking and tracing down to single item level. The integrated computer and multiple connectivity options provide powerful reading performance, which makes it ideal for several applications including gates and tunnel solutions. Equipped with the supercharged Nordic ID RAIN RFID module it performs at an impressive reading speed of up to 1000 tags/second. The integrated Linux based computer enables installation and execution of 3rd party applications.
Features:• Smart fixed area reader for automated UHF RFID data collection
• Enables real-time visibility of tagged items
• Integrated Linux based computer for versatile SW development options
• Cutting edge UHF RFID reading sensitivity and reading speed
• Versatile communication options
SERVICES AND SUPPORT• Free support during and after 2-year warranty time
• Maintenance service and extended maintenance contract
• Software customization and development support
• Technology, product and integration training
• Technology and project consultation
• Project management services
Nordic ID AR 62 is available in 3 different versions: Nordic ID AR62 4-port reader / UHF RFID (USB / LAN 10 /100&PoE);
Nordic ID AR62 4-port reader / UHF RFID (USB / LAN 10 /100&PoE / WLAN);
Nordic ID AR62 4-port reader / UHF RFID (USB / LAN 10 /100&PoE / WLAN / 3G).
