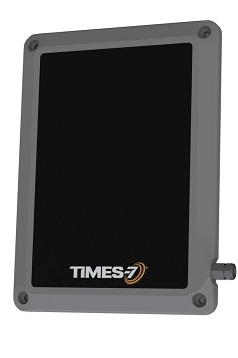

Times-7 RUGGEDLINE IP67 Antenna A3010 range - With 5dBiC performance in a sleek yet ultra-rugged and compact 210 x 155 mm (8” x 6”) dimension, the A3010 is ideal for Forklift RFID and proven in applications from waste management to access control. Impact strengthened, the RuggedLine IP67 range is rated for 24/7 outdoors and all weather use.With 5dBic performance in a sleek yet ultra-rugged and compact 210x155mm (8” x 6”) dimension, the A3010 is ideal for
Times-7 RUGGEDLINE IP67 Antenna A3010 range - With 5dBiC performance in a sleek yet ultra-rugged and compact 210 x 155 mm (8” x 6”) dimension, the A3010 is ideal for Forklift RFID and proven in applications from waste management to access control. Impact strengthened, the RuggedLine IP67 range is rated for 24/7 outdoors and all weather use.
With 5dBic performance in a sleek yet ultra-rugged and compact 210x155mm (8” x 6”) dimension, the A3010 is ideal for Forklift RFID and proven in applications from waste management to access control. Impact strengthened, the RuggedLine IP67 range is rated for 24/7 outdoors and all weather use.
Available in a flush or rack mount configuration, Times-7’s RuggedLine antennas are setting a new benchmark for high performance RFID in demanding/industrial applications.
Times-7’s RuggedLine antennas are setting a new benchmark for high performance RFID in demanding/industrial applications.
Applications: Warehousing Access Control Waste Management
Physical / Environmental Specifications: • Dimensions (LxWxD): 210mm x 155mm x 14mm ( 8.3" x 6.1" x x 0.55" ) • Weight: 0.75kg (1.6 lbs) • Radome Material : PPE • Environmental Rating: IP67 • Operating / Storage Temperature: -20° to +55°C / -30° to +65°C -4° to +131°F / -22° to +149°F • Mounting: Flush mount standard, rack mount accessory available • Connector type / position: 1 m 195 cable with RP-TNC connector
Electrical Specifications • Frequency Range: 864 - 869 MHz / 902 - 928 MHz • Polarisation: Circular • Far-field Gain: 5dBiC Peak • Far-field 3dB beam width: XZ = 70° YZ = 90° • Typical VSWR across frequency range: < 1.4 across the band • Front to back ratio: -13dB • Axial ratio: <2.5dB • Typical Nominal Impedance: 50? • Anti-static protection: Yes • Maximum Input Power: 6W
Pushing the boundaries of RFID technology worldwide Times-7 are leaders in RFID antenna design and manufacture.
Our patented award winning UHF antennas meet the needs of virtually any industry application; providing customers with fast accurate tracking of products, assets & people; empowering organizations to transform processes & reduce costs.
Our SlimLine range of antennas is unique in the RFID industry; offering high levels of performance & durability in an aesthetically superior form.
Proven in a diverse & growing range of markets, applications include: retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management.
