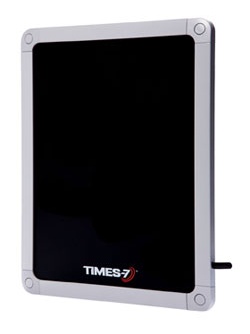

Times-7 A6031 ultra-low profile circular polarized flat-panel  UHF RFID Antenna

Part of the SlimLine range of multi-purpose antennas, the A6031 is an ultra-low profile circular polarized flat panel antenna for UHF RFID applications in customer facing or space conscious environments. With a 4 m / 13 ft. read range, the A6031 is similar in size and weight to a Tablet PC and can easily blend into any office or retail environment.

Up to 4m / 13 ft. read range
Just 12 mm / 0.5 in. thick
Sleek & rugged design, with customer friendly aesthetics
Typical applications: Retail, office, industry / any space constrained or customer facing environment

Part of the SlimLine range of multi-purpose antennas, the A6031 is an ultra-low profile circular polarized flat panel antenna for UHF RFID applications in customer facing or space conscious environments.
With a 4m / 13ft.read range, the A6031 is similar in size and weight to a Tablet PC and can easily blend into anyoffice or retail environment.

Operating Region:
•    USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards
•    EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standards

Physical / Environmental Specifications
Dimensions (LxWxD): 275mm x 214mm x 12mm (10.8 “ x 8.5 “ x 0.5“)
Weight: 0.6 k g / 1.3lbs.
Radome Material : Fire retardant ABS
Environmental Rating: IP65
Operating / Storage Temperature: -20° to +55°C / -30° to +65°C -4° to +131°F / -22° to +149°F
Mounting: Integrated mounting holes / no accessory req.
Connector type / position: SMA female side fly lead (300 mm / 1 ft.)
Vibration: IEC 68-2-6 (10 to 150 Hz, 0.5g, 1 hr. / 2 axes, Random Vibration)
Humidity: IEC 68-230 (+25° to +55°C / +77° to +131°F / 24 hr. cycle of at least 90% relative humidity)
Cold Test: IEC 68-2-1 (-40°C/ -40°F / 24 hr.)
Heat Test: IEC 68-2-2 (+70°C / +158°F / 24 hr.)
Temperature Shock Test: IEC 68-2-1 (10 cycles of 30 mins. at -40°C / -40°F followed by 30 mins. at +70°C / +158°F and back)
