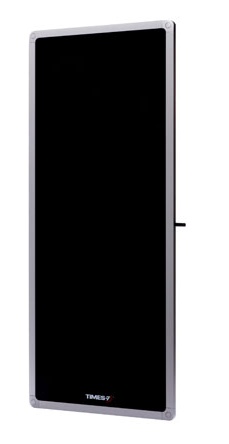

Times-7 A6034S SlimLine range of multi-purpose circular polarized flat-panel RFID UHF antenna
Part of the SlimLine range of multi-purpose antennas, the A6034S is an ultra-low profile high performance circular polarized flat panel antenna. With a read range of up to 9m / 29ft. and utilizing a narrow even beam, the A6034S provides for a highly accurate read zone. The rugged design of the A6034S makes it suitable for a range of indoor / outdoor RFID deployments, including industrial applications.
Up to 9m /29ft.read range Just 12mm / 0.5 in. thick High performance & rugged design Suitable for indoor/outdoor use & industrial applications
Operating Region: • USA & Canada (902Mhx - 928 MHz) - For countries adhering to FCC standards • EU & UK (865Mhz - 867 MHz) - For countries adhering to ETSI standards
Physical / Environmental Specifications: • Dimensions (LxWxD): 394 mm x 394mm x 12 mm (15.5 “x 15.5“ x 0.5 “) • Weight: 1.75kg / 3.8lbs. • Radome Material: Fire retardant ABS • Environmental Rating: IP65 • Operating / Storage Temperature: -20° to +55°C / -30° to +65°C -4° to +131°F / -22° to +149°F • Mounting: Integrated mounting holes / no accessory req. • Connector type / position: SMA female side fly lead (300mm / 1ft)
Electrical Specifications • Frequency Range: 865- 867MHz / 902-928 MHz • Polarization: Circular • Far-field Gain: 9dBiC • Far-field 3dB beamwidth: 50in both planes • Typical VSWR across frequency range: < 1.4:1 • Front to back ratio: 13dB • Axial Ratio: <2dB at boresight • Nominal Impedance: 50 ? • Anti-static protection: Yes • Maximum Input Power: 6W
Pushing the boundaries of RFID technology worldwide Times-7 are leaders in RFID antenna design and manufacture. Our patented award winning UHF antennas meet the needs of virtually any industry application; providing customers with fast accurate tracking of products, assets & people; empowering organizations to transform processes & reduce costs.
Our SlimLine range of antennas are unique in the RFID industry; offering high levels of performance & durability in an aesthetically superior form. Proven in a diverse & growing range of markets, applications include: retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management.
