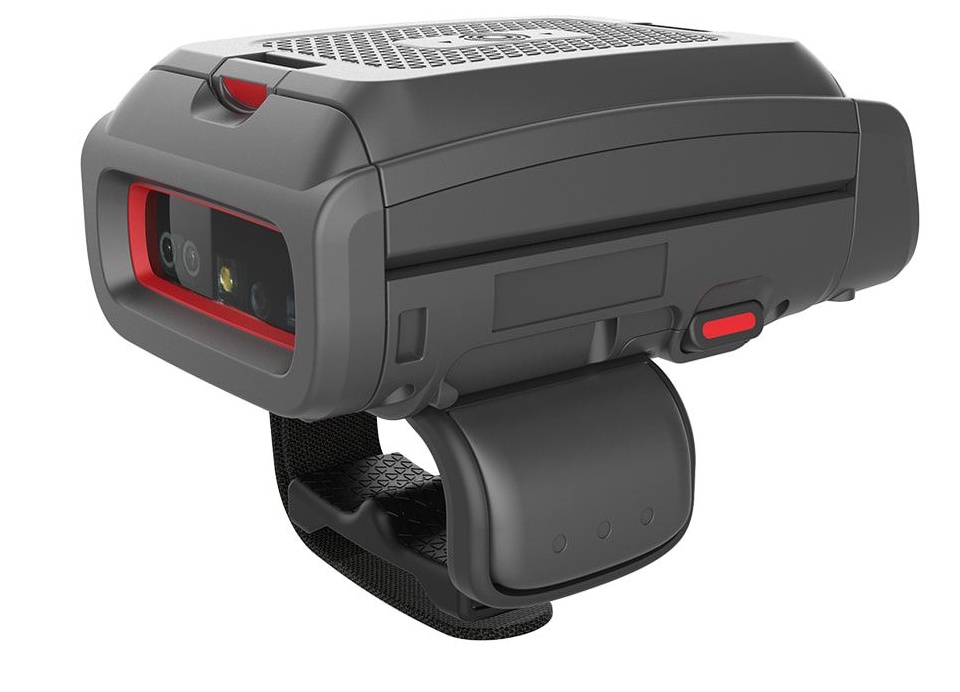

Honeywell 8690i Wearable UHF RFID Reader 1D & 2D Barcode Scanner Hand-Free Mobile Computer operates with Hands-Free Compact RFID mini mobile computer with UHF RFID Mobile Hands-free RFID UHF Reader with 1D & 2D barcode scanner and mobile computer UHF RFID Frequency Rangesare for UK & EU frequencies at 865-868MHz well as for USA & canada with 902-928MHz RFID frequency now available as a two-finger ring or back-of-the-hand model and weighs only lightweight: 211grams with robust IP54-certified rating.

Honeywell 8690i Wearable UHF RFID Reader 1D & 2D Barcode Scanner Hand-Free Mobile Computer is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency with ergonomic 8690i Wearable RFID Mini Mobile Computer delivers essential workflow information directly to the worker’s line of sight and enables input to support common workflows with a single device. Eliminating wasted motion with always-at-hand, ergonomic RFID reading and scanning drives efficiency in high frequency workflows.

Industry-standard EPC Global Class 1 Gen 2, RFID reader ensures that the 8690i can read all common supply chain RFID tags.
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8690i wearable mini mobile is built to endure rugged work environments and real-world use.
Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates
Battery: 3.6 V, 3400 mAhHours of operation:
Minimum 6 hour active shift with continuous RFID reading and optical scanning every 4 seconds
Hot Swap Capability: Under typical conditions, device will remain operational for 100 seconds while replacing battery
Expected Charge Time:Battery charger: 3 hours
Honeywell 8690i Wearable UHF RFID Reader Hand-Free Mobile Computer GLOVE CHARACTERISTICS
Strap glove securely locates 8690i on back of hand for optimum dexterity, ergonomics, and user comfort. Secondary RFID antenna optimizes performance reading items during handling process.
Highly durable design for long lifespan, reduced consumable costs; trigger rated for 2.5MM activations.
Hygienic, non-absorbent material construction.Compatible with bare hand or conventional glove for comfort and user safety.
One size; highly adjustable at index finger, palm, and wrist. Left and right hand versions available.

The RFID mini mobile computer is also robust: it is IP54-certified and withstands 2,000 falls from 0.5 m, as well as 36 falls from 1.5 m onto concrete. A 3,400 mAh battery provides the necessary power during usage - the performance has been designed for at least a six-hour active shift. When the battery is being replaced, the 8690i remains operational for 100 seconds after the battery is removed.

The 8690i is available as a two-finger ring or as a back-of-the-hand installation on a glove. On the glove, the 8690i is securely fixed to the back of the hand - ideal for even more freedom of movement and ergonomics. Plus, 4- and 12-port charging stations are available for the batteries and the mini mobile computer.

8690i drives streamlined workflows via a single device for many applications, replacing an RFID reader, scanner and mobile computer. The customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8690i wearable mini mobile computer connects directly to the network application through Wi-Fi and the SDK, even enabling offline functionality via TotalFreedom plugin development.

Merging common applications, such as picking, packing and sorting, onto a single device offers improved ergonomics with reduced acquisition and operating costs when compared to wearable scanner plus mobile computer solutions. Rapid RFID product and location identification can enable up to a 66% reduction in steps per transaction vs. handheld barcode scanning applications in high frequency workflows, increasing productivity and operational throughput.

Configuration options help tailor the 8690i device the end-use application. It is available (and quickly field-reconfigurable) as a two-finger ring or a back-of-hand glove mount, enabling the device to suit ergonomic and workflow requirements.
