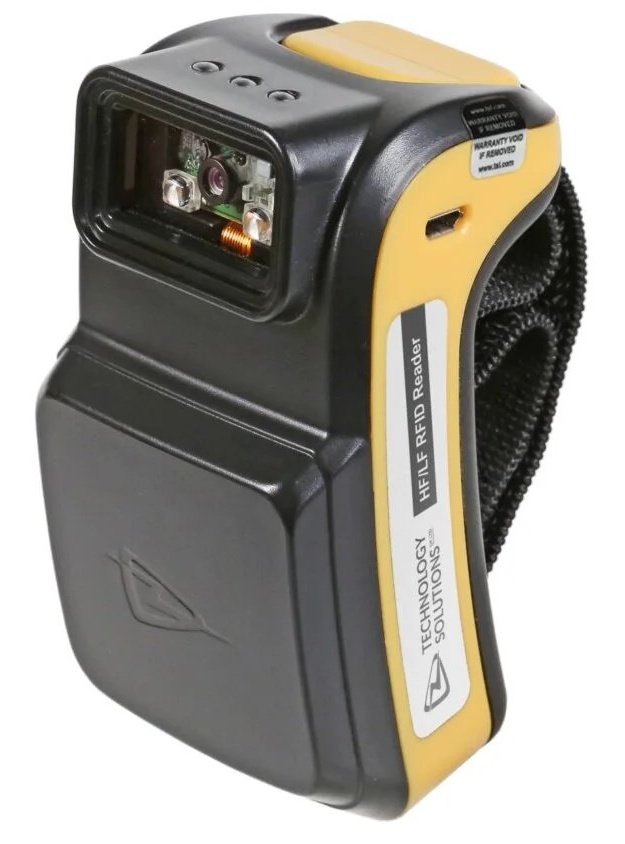

TSL 2173 Bluetooth Wearable LF & HF & NFC RFID & 2D Barcode Reader enables a Bluetooth host device to read and write to a wide variety of Low Frequency and High Frequency RFID transponders. The optional 2D Imager version can also capture 1D and 2D barcodes.RFID & Barcode scanned data information can be ‘typed’ by the Reader into any application on the host device using the Bluetooth® HID keyboard mode. Alternatively, the Reader can be commanded
TSL 2173 Bluetooth Wearable LF & HF & NFC RFID & 2D Barcode Reader enables a Bluetooth host device to read and write to a wide variety of Low Frequency and High Frequency RFID transponders. The optional 2D Imager version can also capture 1D and 2D barcodes.
RFID & Barcode scanned data information can be ‘typed’ by the Reader into any application on the host device using the Bluetooth® HID keyboard mode. Alternatively, the Reader can be commanded from an app on the host device. As the 2173 Reader uses the existing TSL ASCII 2 Protocol, developers can take advantage of the comprehensive, free SDKs provided by TSL to develop in Xamarin, Java, Objective C or .NET.
Integrate RFID Into Your Solution!The TSL 2173 reader enables a compatible Bluetooth® host to read and write a wide variety of HF and LF RFID transponders as well as capture 1D and 2D barcodes (imager version only). These can be ‘typed’ into any application on the host device using the Bluetooth® HID keyboard mode. Alternatively, the reader can be commanded from an app on the host device. As the 2173 uses the existing TSL® ASCII 2 Protocol, developers can take advantage of the comprehensive, free SDKs provided by TSL® to develop in Xamarin, Java, Objective C or .NET
Main Features: Multi-Band RFID Reading and Writing
Combined LF RFID, HF RFID and NFC reading and writing in an incredibly compact and lightweight device.
Multi-ISO RFID Supports multiple ISO industry standards including ISO15693, ISO14443(A/B) and ISO18092 ECMA-340 (NFC).
Batch Data Collection - Removable high capacity Micro SD data card and real time clock for extended batch data collection with time stamp independent of the host connection.
OS Independence - The reader is compatible with Android, iOS and Windows.
High Performance Barcode Scanning - Integrated 2D imaging engine provides class leading barcode scan performance via its unique patent pending fast pulse illumination which delivers outstanding motion tolerance and class leading 1D and 2D data capture
