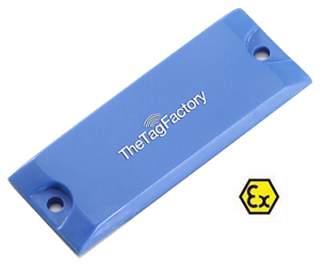

The Tag Factory M-Prince UHF Class 1 GEN 2 – Atex Tag
M-Prince Tag is ATEX approved and thus can be used in potentially explosive atmosphere. Operates effectively with a very good read range, especially when attached to metal built with rugged construction for high durability. - Can be attached by screws with the help of two holes and also be provided with Adhesive tape for easy attachment. Flexible Read/Write Range (reader dependent).Applications: - Used in asset tracking applications such as Equipment, Parts,
M-Prince Tag is ATEX approved and thus can be used in potentially explosive atmosphere. Operates effectively with a very good read range, especially when attached to metal built with rugged construction for high durability. - Can be attached by screws with the help of two holes and also be provided with Adhesive tape for easy attachment. Flexible Read/Write Range (reader dependent).
Applications: - Used in asset tracking applications such as Equipment, Parts, Containers, railway and warehousing solutions. - Factory automation, Automotive & Security purpose.
Chip Type: Alien Higgs 3 EPC Class 1 Gen 2 EPC 96 bit extendable upto 480 bits User Memory 512 bit Data retention of 50 years Write endurance 100.000 cycles
Mechanical: Dimension: 90 x 34 x 7mm Material: ABS Colour: Blue Weight: 19.3 g
Electrical: Operating Frequency: 865-868MHz, (902-928MHz also available on request) Operating mode: Passive (battery-less transponder)
Ingress Protection: IP68
Thermal: Storage Temp: -20°C to +70°C Operating Temp: -20°C to+70°C
Part Number: 316V1-Ex
Atex Marking details: II 1 G,Ex ia IIC T5 Ga
Options: Available with: Other IC type and Frequency on request Other plastic material and colours Adhesive backing for easy mounting (indoor application) Available for non-metallic application
