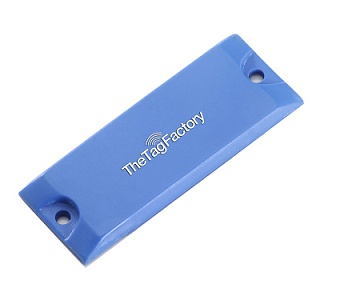

The Tag Factory M-Prince UHF Class 1 GEN 2 – On Metal Tag
Operates effectively with a very good read range, especially when attached to metal with rugged construction for high durability and can be attached by screws with the help of two holes and also be provided with Adhesive tape for easy attachment. It's flexible Read/Write Range (reader dependent).Applications:- Used in asset tracking applications such as Equipment, Parts, Containers, railway and warehousing solutions.- Factory automation, Automotive & Security
Operates effectively with a very good read range, especially when attached to metal with rugged construction for high durability and can be attached by screws with the help of two holes and also be provided with Adhesive tape for easy attachment. It's flexible Read/Write Range (reader dependent).
Applications: - Used in asset tracking applications such as Equipment, Parts, Containers, railway and warehousing solutions. - Factory automation, Automotive & Security purpose.
Chip Type: Alien Higgs 3 EPC Class 1 Gen 2 EPC 96 bit extendable upto 480 bits User Memory 512 bit Data retention of 50 years Write endurance 100.000 cycles
Mechanical: Dimension: 90 x 34 x 7mm Material: ABS Colour: Blue Weight: 19.3 g
Electrical: Operating Frequency: 865-868MHz, (902-928MHz also available on request) Operating mode: Passive (battery-less transponder)
Ingress Protection: IP68
Thermal: Storage Temp: -40°C to +85°C Operating Temp: -40°C to +85°C
Part Number: 316V1
Options: Available with: Other IC type and Frequency on request Other plastic material and colours Adhesive backing for easy mounting (indoor application) Available for non-metallic application
